Pallet Lifter

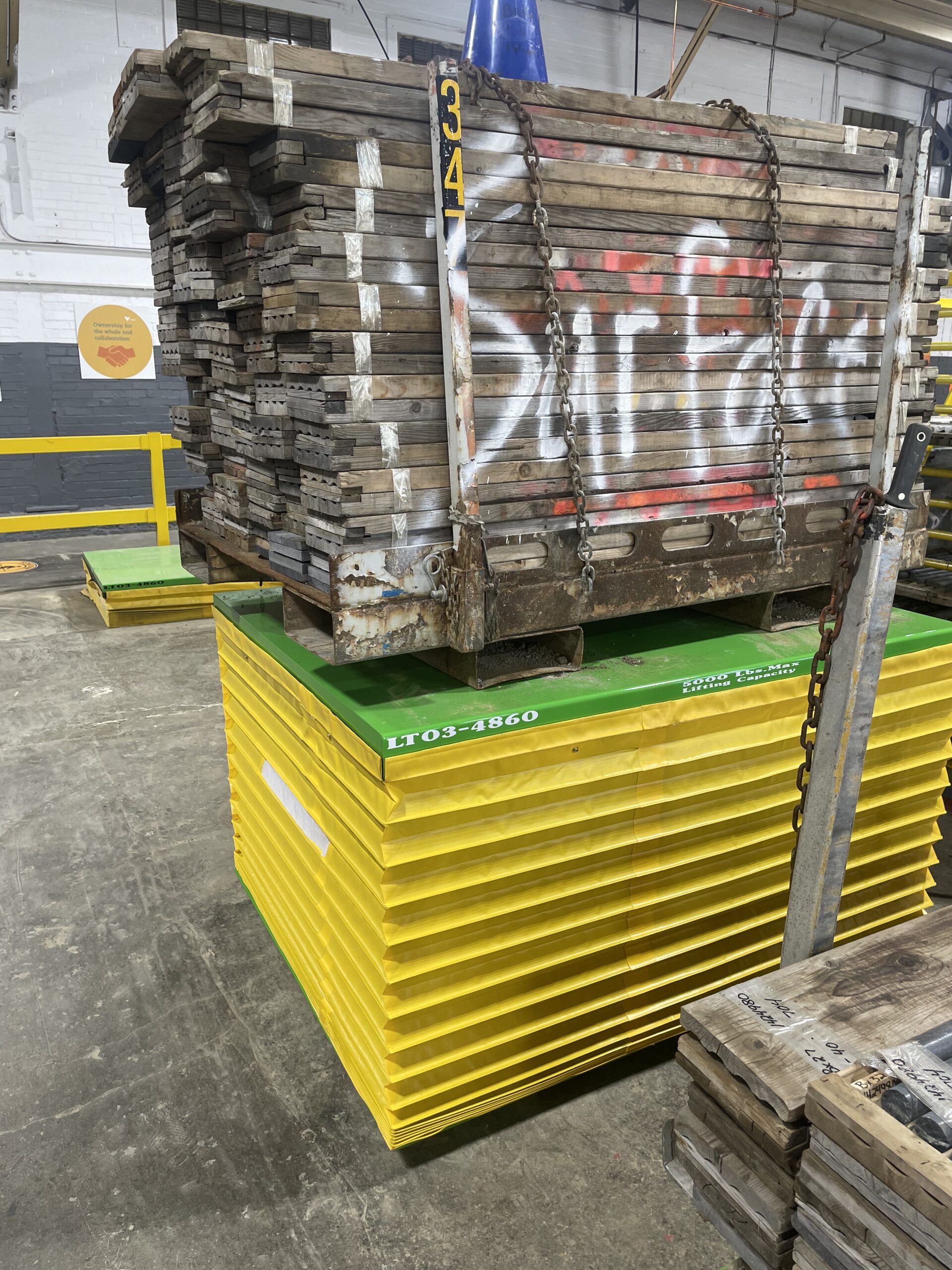

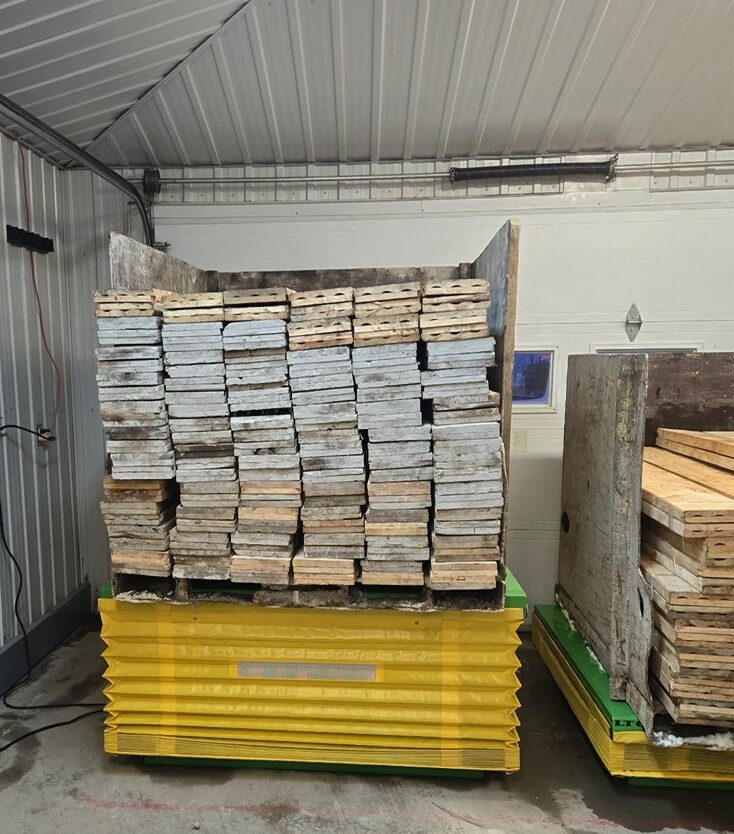

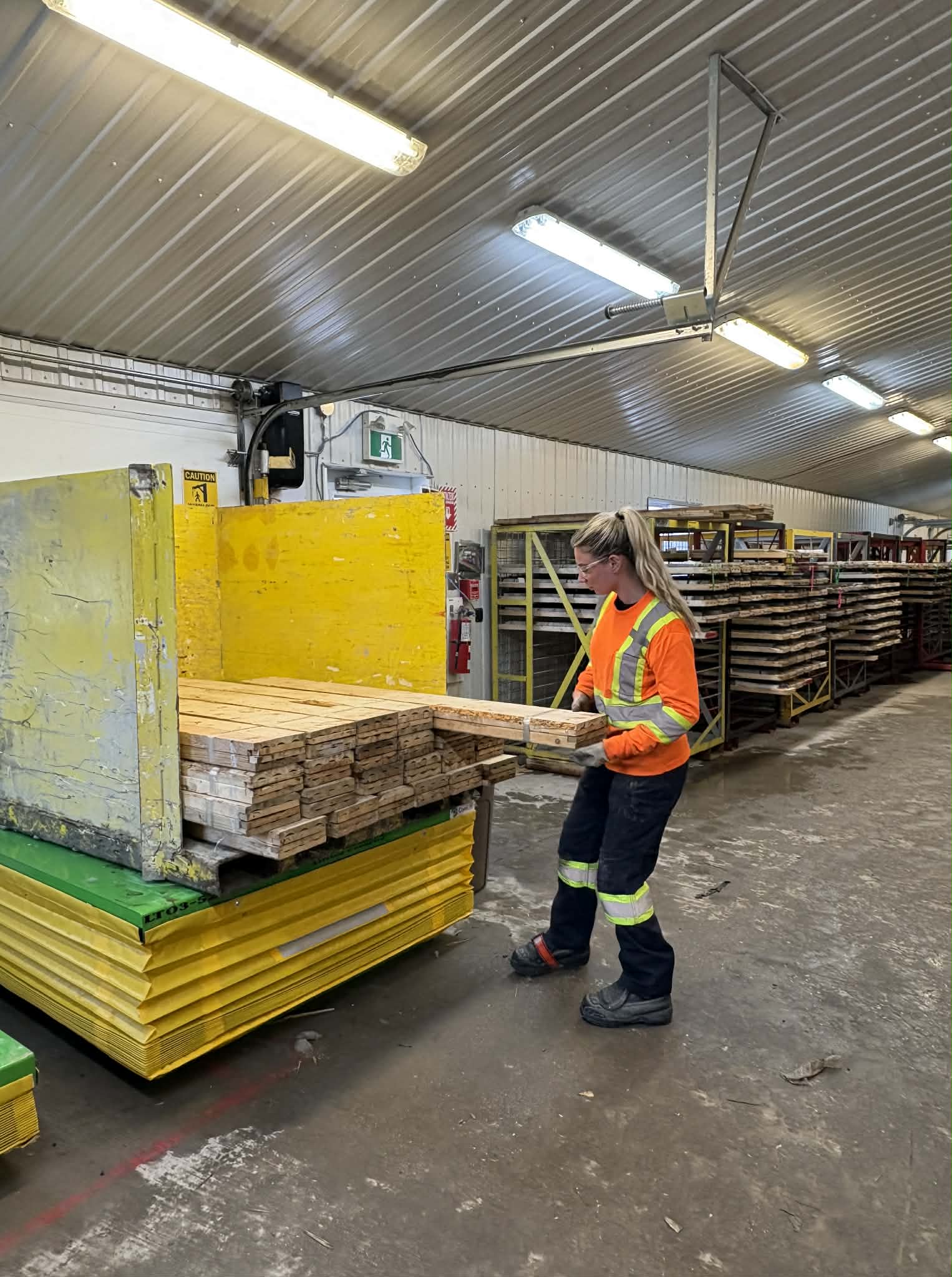

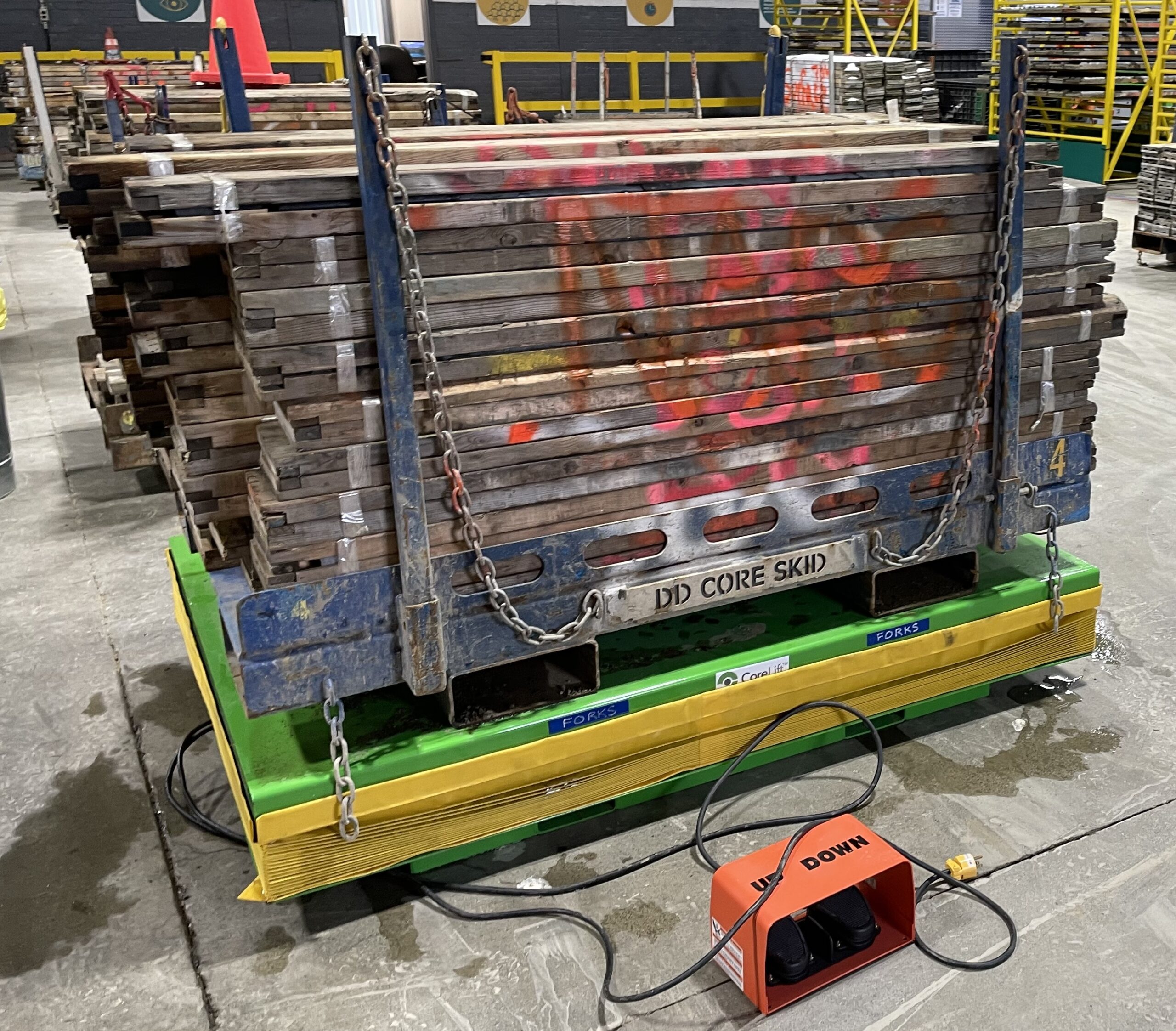

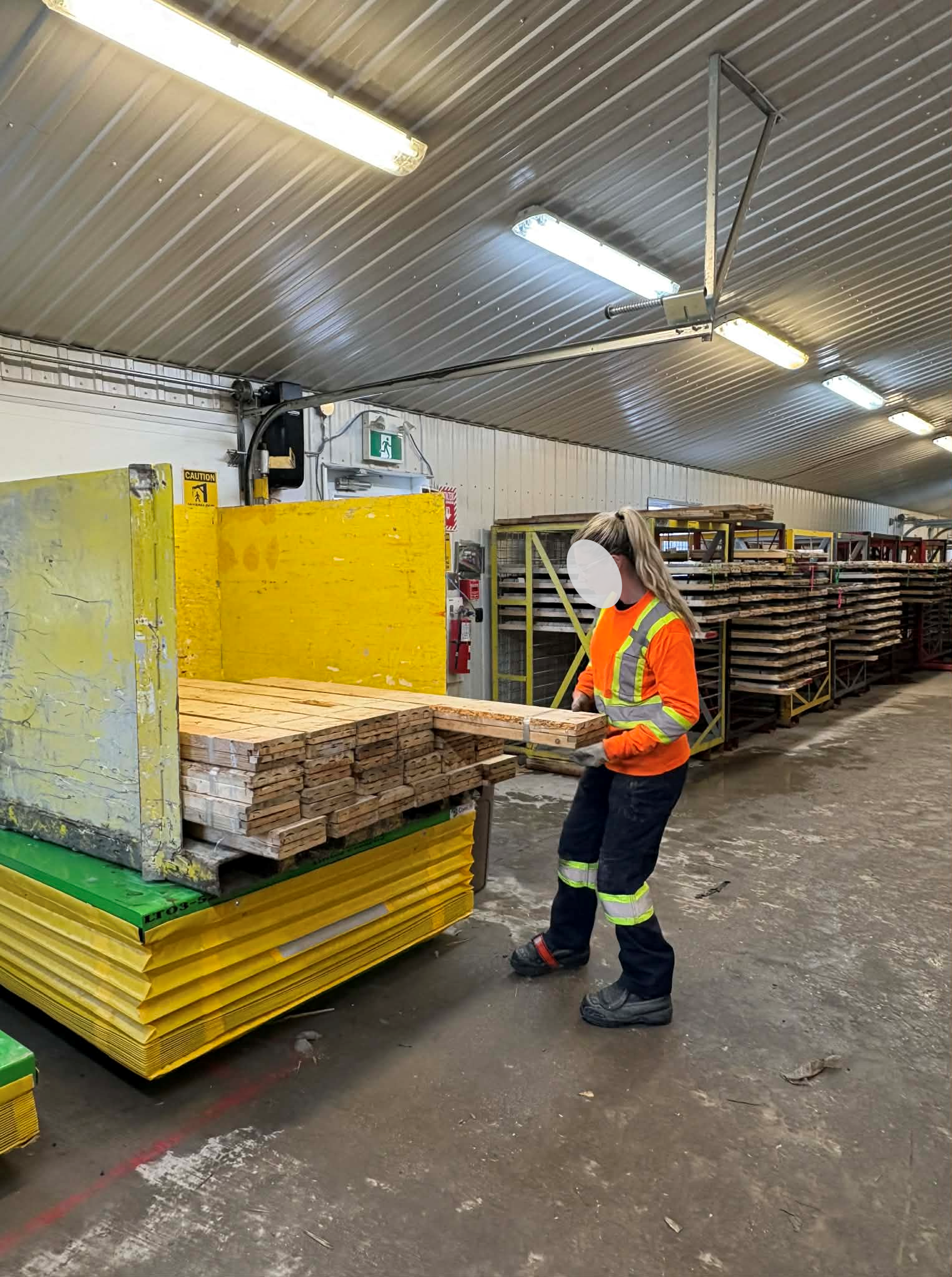

The CoreLift Pallet Lifter is engineered specifically for handling core boxes, offering a seamless solution for moving and transferring heavy loads to the “bench” or CoreLift table. Designed with a low-profile structure and easy-to-use foot pedal operation, this lifter ensures both convenience and efficiency. Powered by a standard 120V plug, it is built to integrate effortlessly into any workspace.

The adjustable platform height, as low as 8’’ (21 cm), promotes improved ergonomics, reducing strain during repetitive tasks. Safety remains a top priority, with features like adjustable maximum height settings, an internal safety velocity fuse, and sealed dual hydraulic components that are water-resistant and built to withstand rugged environments.

Corelift products are UL/CSA certified, with components either waterproof or water resistant for reliable performance.

Specifications

  • Adjustable Platform Height • Ranges from as low as 8’’ to 36” for ergonomic operation.
  • Optional Features:
    • ➤ Centering platform for precise positioning.
    • ➤ Rotating platform for added flexibility.
    • ➤ Material handling chassis for enhanced mobility.
    • ➤ Purity oil for hydraulic systems.
  • Protective curtain for operator safety.
  • Maximum Capacity: Rated for 5,000 lbs (2,270 kg), test loaded to 125% capacity.
  • Electrical Certification: All components are UL and CSA certified, waterproof, and weather-resistant for reliable performance.
  • Built in Canada: Proudly manufactured with the highest standards and backed by a 3-year warranty.
Brochure

Use a pallet lifter instead of stacking wood pallets.

FAQ

Why "Safety First"?

Because in mining, it comes first.
Safety first In our operations.
Safety first in our products.
And safety first means putting the person first.

What warranty do we offer?

All our products come with a 3 year standard warranty.

What is the installation process after purchase?

Our equipment can be shipped pre built or in components with site install by our certified technicians.

What about maintenance support?

We have a comprehensive maintenance program which involves quarterly check-ins and a full annual maintenance on all the equipment including load testing on the electronic components.
